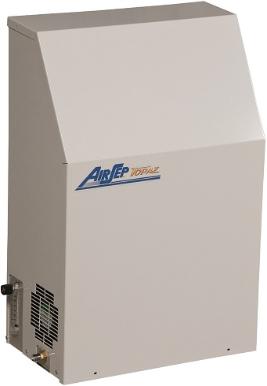

AirSep Topaz Oxygen Generator Series
Ferguson
Engineering
(805) 461-3920

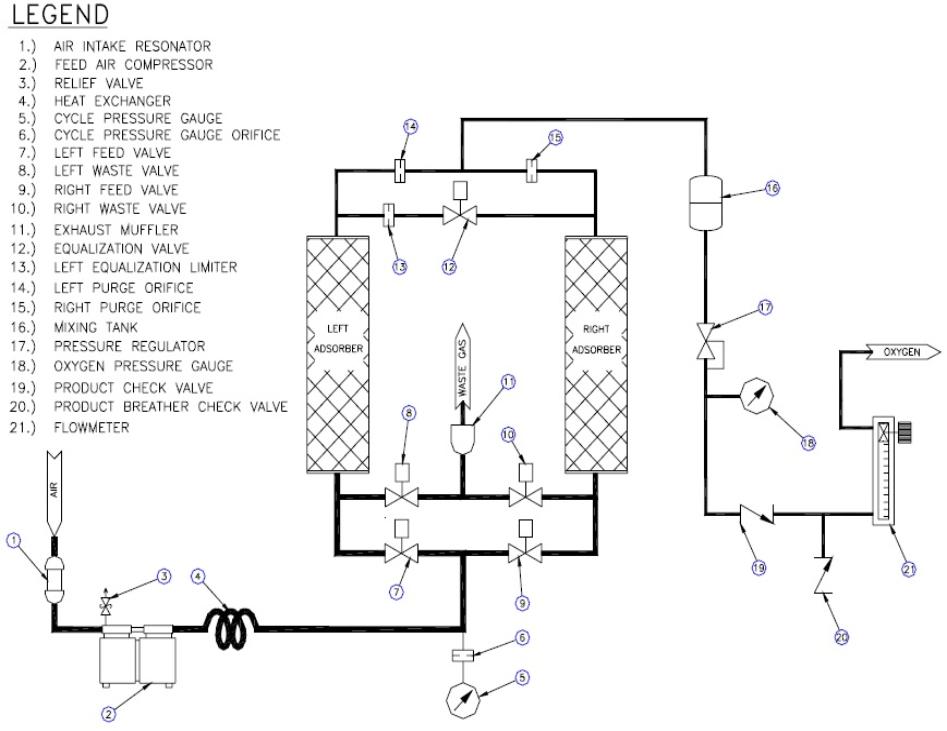

Basic Topaz Flow Diagram
• Self-contained (built-in air compressor)
• Heavy duty metal enclosure (Alum, or S.S.)
• Wall or rack-mount design
• Ozone/high temperature process tubing
• Quick release fittings for ease of maintenance
• Optional oxygen concentration monitor
• Size: 19" x 10" x 27"
• Weight: 53 lbs - 265 lbs (depending on model)
• Oxygen dew point: -100° F
• Oxygen concentration: 93% nominal (90% Utlra)
• Typical power consumption: 600 W (exc. Dual)
• Sound Level: 55 dba @ 3', open field conditions
• Oxygen outlet connection: 1/4" NPT-M/B-M size
oxygen adapter
Alum
Model #                           Part Description
Info. /
Drgs.
12
Cover
Matl.
53
Apprx
wt,
lbs
AS013-105 AirSep Topaz, 120V 60Hz, Alum
$1,700.00
Price         Buy
Oxygen
monitor
No
AirSep, TOPAZ
Voltage
O2
Press
psi
120/60
9
Max
Flow
SCFH
AirSep, TOPAZ PLUS
AirSep, TOPAZ ULTRA
O2
%
93
Alum
12
55
AS013-106 AirSep Topaz, 220V 50Hz, Alum
$1,781.00
No
220/50
9
93
Alum
12
55
AS013-107 AirSep Topaz, 220V 60Hz, Alum
$1,791.00
No
220/60
9
93
S.S.
12
73
AS013-115 AirSep Topaz, 120V 60Hz, S.S.
$1,934.00
No
120/60
9
93
S.S.
12
75
AS013-120 AirSep Topaz, 220V 50Hz, S.S.
$2,015.00
No
220/50
9
93
Alum
12
54
AS013-124 AirSep Topaz, 120V 60Hz, Alum, O2 Monitor
$1,853.00
Yes
120/60
9
93
Alum
12
56
AS013-125 AirSep Topaz, 220V 50Hz, Alum, O2 Monitor
$1,877.00
Yes
220/50
9
93
Alum
17
56
AS018-101 AirSep Topaz Plus, 120V 60Hz, Alum
$2,678.00
No
120/60
20
93
Alum
17
60
AS018-102 AirSep Topaz Plus, 220V 50Hz, Alum
$2,782.00
No
220/50
20
93
Alum
17
60
AS018-110 AirSep Topaz Plus, 220V 60Hz, Alum
$2,782.00
No
220/60
20
93
Alum
17
57
AS018-111 AirSep Topaz Plus, 120V 60Hz, Alum, O2 Monitor
$2,886.00
Yes
120/60
20
93
S.S.
17
80
AS018-115 AirSep Topaz Plus, 220V 60Hz, S.S.
$3,098.00
No
220/60
20
93
Alum
21
62
AS123-2 AirSep Topaz Ultra, 220V 50Hz, Alum
$3,071.00
No
220/50
20
90
S.S.
21
82
AS123-3 AirSep Topaz Ultra, 220V 50Hz, S.S.
$3,388.00
No
220/50
20
Alum
21
58
AS123-7 AirSep Topaz Ultra, 120V 60Hz, Alum
$2,984.00
No
120/60
20
Alum
21
59
AS123-8 AirSep Topaz Ultra, 120V 60Hz, Alum, O2 Monitor
$3,215.00
Yes
120/60
20
S.S.
21
78
AS123-9 AirSep Topaz Ultra, 120V 60Hz, S.S.
$3,299.00
No
120/60
20
S.S.
21
79
AS123-10 AirSep Topaz Ultra, 120V 60Hz, S.S., O2 Monitor
$3,531.00
Yes
120/60
20
AirSep, DUAL TOPAZ PLUS
Alum
38
265
AS116-1 AirSep Dual Topaz Plus, 120V 60Hz, Alum, 30 Gal.
$6,452.00
No
120/60
20
93
Alum
38
273
AS116-2 AirSep Dual Topaz Plus, 220V 50Hz, Alum, 30 Gal.
$6,569.00
No
220/50
20
93
Model #                           Part Description
Info. /
Drgs.
Cover
Matl.
Apprx
wt,
lbs
Price         Buy
Oxygen
monitor
Voltage
O2
Press
psi
Max
Flow
SCFH
O2
%
Model #                           Part Description
Info. /
Drgs.
Cover
Matl.
Apprx
wt,
lbs
Price         Buy
Oxygen
monitor
Voltage
O2
Press
psi
Max
Flow
SCFH
O2
%
90
90
90
90
90
Model #                           Part Description
Info. /
Drgs.
Cover
Matl.
Apprx
wt,
lbs
Price         Buy
Oxygen
monitor
Voltage
O2
Press
psi
Max
Flow
SCFH
O2
%

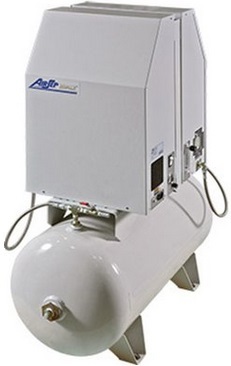

DUAL TOPAZ PLUS
__________________________________________________________________________
__________________________________________________________________________
Topaz, Power-in side
• Self-contained (built-in air compressors)
• Heavy duty metal enclosure
• Tank-mount design, 30 gallon receiver
• Ozone/high temperature process tubing
• Quick release fittings for ease of maintenance
• Size: 40" x 19" x 47"
• Weight: 265 lbs
• Oxygen dew point: -100° F
• Oxygen concentration: 93% nominal
• Typical power consumption: 10 A (120V), 5 A (220V)
• Oxygen outlet connection: 1/4" NPT-M/B-M size
oxygen adapter

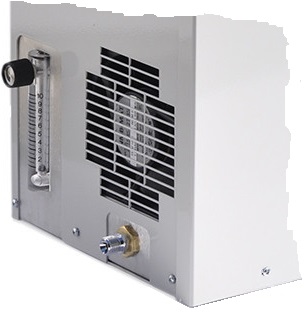

Topaz, Oxygen outlet side
Volume pricing for most units:

1-2 units = List price
3-9 units = -5%
>9 = call for quote.
