Special Features...

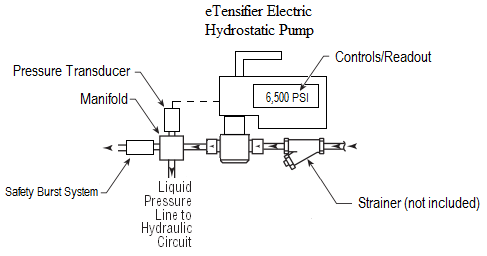

Because the pump is equipped with a transducer, it is
able to monitor system pressure and turn off the motor
when set pressure is reached.  The pump automatically
restarts when needed to maintain the pre-selected
pressure in the system.  It will continue to cycle on and
off as needed, similar to how an air hydrostatic pump
works.  This saves energy and reduces
the unwanted
heat build up caused by other continuously running
hydraulic systems that
have to "dump" excess pressure
through a relief valve.  The transducer also allows
on-board pressure display on the control screen
eliminating the need for an additional pressure gauge.

In addition, the
eTensifier features a new quick-connect
system for exchanging the pump high-pressure section
to facilitate routine maintenance without taking the whole
pump out of commission. The pump head can be
changed in minutes.
Frequently Asked Questions...

Q.        How much control do I have over liquid output pressure?
A.        The output pressure is basically infinitely variable within the pressure range of that pump.  A knob on the control box of
the pump allows you to select the pressure you want the pump to maintain.

Q.        Are you saying that I can enter an specific desired pressure on the screen, hit the button and walk away and
it will automatically pump up to and hold that pressure?
A.        Correct, that is exactly what this pump will do.  Think of it as a "smart pump."  And it will do it repeatedly and consistently.

Q.        Can I control the liquid flow rate too?
A.        You can, to a certain extent.  You accomplish this by selecting one of five different "gain" settings to determine pump
speed.  The pump is programmed to pump at high speed until it reaches 50% of set pressure then is slows to approach the final
pressure more accurately.  You can select 5 different gain settings which will determine whether you pump at the highest flow
rate (5), the most accurate rate (or least likely to overshoot the desired pressure) (1) or something in between.

Q.        What kind of liquids can I run through these pumps?
A.        The liquid portion of the pump is made of stainless steel and the pump seals are available in multiple options which means
that most liquids can be readily accommodated.  See wetted materials question below.

Q.        How compact are these pumps?

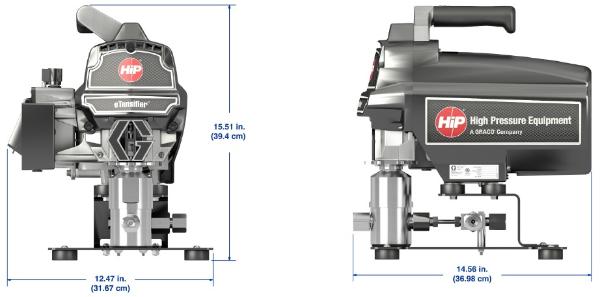

A.        The standard eTensifier pump is 15 in. long x  15 in. tall x 12 in. wide and weighs about 46 lbs.  You can see drawings
and other specifications for the pumps on the data/spec sheet.

Q.        Why is the published flow rate on these pumps lower than on the J-Series air version?
A.        They are rated differently.  The J-Series Sprague pumps have been historically rated at their maximum flow rate (with
essentially no back pressure on the pump).  The eTensifier pumps have been rated instead using the more traditional
flow-at-rated-pressure value, which is lower.  The air pumps also pump much less fluid when they approach their stall (high)
pressure.

Q.        Do I need to lubricate this pump?
A.        No, you do not.  This pump does have a cycle counter so that you can keep track of pump life for maintenance purposes.

Q.        How much electrical power will this pump use?
A.        It plugs into a standard 115 VAC or 240 VAC wall outlet (115 VAC,15A, 50/60 Hz or 240 VAC, 9A, 50/60 Hz).

Q.        Does this pump require positive liquid pressure on the inlet side of the pump (flooded suction)?
A.        Some do and some do not.  Contact us if your application does not have positive pressure at the inlet.  In general, the
higher pressure pumps require more care in ensuring adequate liquid inlet pressure.

Q.        What materials are used for the wetted section of the pump?
A.        The standard pump uses the materials below (other seal options available for most applications):

Liquid Body: 303 Stainless Steel
Liquid (driven) Piston: 416 Stainless Steel Chrome Plated
Piston O-Ring: Nitrile
Piston Back-up Ring: Teflon (or equivalent compound)
Check Valve Body: 416 Stainless Steel
Check Valve Poppet: 17-4ph Stainless Steel
Check Valve Spring: 302 Stainless Steel
Check Valve Seal: Nitrile

The common alternate seal & o-ring materials are: Viton and EPR.

Q.        Is this pump noisy?
A.        No.  The electric eTensifer actually runs more quietly than its S-216-J Series (air) counterpart.

Q.        How similar is the pump head on the eTensifer to the old "J" Series pumps we are familiar with?
A.       It's the same.  The internal portion of the pump head, and the check valves, are identical to the Sprague JB-series pumps.

Q.        What company makes the eTensifer pumps?
A.       The Sprague Products line of pumps was sold in 2017 to High Pressure Equipment Company (HiP). a division of Graco.
HiP specializes in making fittings, valves, tubing and accessories for the high pressure and very high pressure markets (up to
150,000 psi).  HiP produces the eTensifier pumps which are a combination of the well known Graco paint sprayer technology and
the Sprague high pressure hydrostatic pump heads.
_____________________________________________________________
HiP eTensifier Pump Info & FAQ
Ferguson
Engineering
(805) 461-3920
What It Does...

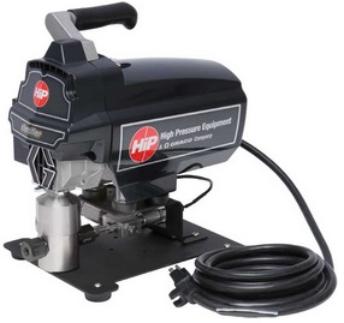

The eTensifier high pressure hydraulic
pump simply plugs into a wall outlet... it
does not require an air compressor. Th
is
pump
represents new technology
introduced by three industry leaders…
patent protected motors and controls from
Graco, proven hydraulic pumps from
Sprague and high pressure components
and customer service from HiP. The
eTensifier will deliver pressures to
36,500 psi with a quiet electric motor, a
smoother flow rate from zero to full
pressure and controls that include an
industry-first pressure test mode that
allows you to set a defined pressure and
walk away.  This is plug'n play pumping.
The motor and controls are covered by a
two year warranty.
Uses...
The HiP eTensifier pumps can produce
pressures in excess of 35,000 psi and are ideal
for hydrostatic testing of hoses, pipes, valves,
fittings and other hydraulic vessels and
products.  They can also be used to deliver
high pressure liquids required by production
machinery for holding, clamping, forming,
shearing and punching. A typical application is
a hydraulic press where long holding cycles are
necessary or where a short stroke and high
force are required.

Pump Options...
These pumps can be special ordered with Viton
or EPR sealing material to accommodate most
liquid chemical applications.  Available in 115
VAC and 240 VAC.
