Floor Stand style fans have a steel tripod base,
stamped aluminum blades and a completely
enclosed steel screen guard.  These fans are
non-oscillating.  A mounting bracket can be
ordered that allows mounting the fan to a wall or
post (adjustable angle) instead of on the tripod.
Venturi tube style axial fans give a more
concentrated stream of air that travels farther than
airflow from conventional fans.  Stamped aluminum
blades, steel guard, fan screens front and rear,
carrying handle, with four feet for floor placement.
Wall mount style fan allows for easy
mounting in a wall, door or paint booth
application.  Stamped aluminum blades,
steel guard, fan screens front and rear.
T-FF-18 Floor Stand Fan, 18 in.
100-1,000
0.5 - 5
2640
1/8
T-FF-24 Floor Stand Fan, 24 in.
1/4
Stand
SPEED
rpm
Compressed
Air Use, CFM
Air Flow
Max CFM
hp
Style
Part Number                          Price       Buy
Stand
0.5 - 7
3460
100-1,000
Wall or Post mounting bracket for Floor Stand Fan,
adjustable angle.
18"
Blade
Dia.
24"
T-FF-WM Mounting Bracket
_______________________________________________________________________________________________________________________________________________________________________________________
Tonson Axial Fans
Tonson Wall Mount Fans
Tonson Floor Stand Fans
Pick between two sizes.  The 18" fan has
an outside dimension of
20 1/2" and a
depth of
10".  The 24" fan has an outside
dimension of
27" and a depth of 12".
Two sizes to choose from.  The larger size
comes with louvers and has outside
dimensions of
28 3/8" square.  Smaller size
available with or without louvers and has
outside dimensions of
22 1/8" square.
Two sizes available.  The 18" diameter fan has
a
23" footprint and an adjustable height
pedestal which allows the total fan height to be
adjusted from 34"-45".  The 24" diameter
fan has a
33" footprint, is 49" tall and is
tiltable but does not  have height adjustment.
Air Driven Fans
Equivalent models: 1746K15, 1746K13,
TG-18AL, TG-18ALT, TG-24AL, TG-24ALT
● Portable or Mountable fans
● 18” or 24" diameter tilt-able fan, non-oscillating, aluminum blades
● Explosion proof Gast air motor,  [Єx] II 2 G D c T4 rated
● 4500 or 5800 CFM max air flow with fully adjustable fan speed
● Required air pressure: 30 - 100 PSI
● Compressed air usage: <1 CFM at slow speed, 7 CFM at max speed
● Overall dimensions: (See below)
● OSHA approved coated steel guards
● Available with or w/o FRL
* air-prep assembly (requires an auto-lubricator*)
● Made in the USA


                        *
FRL = Filter / Regulator / Lubricator (air preparation unit)
Sorry, all Tonson fans (listed below) are no longer available in the United States.

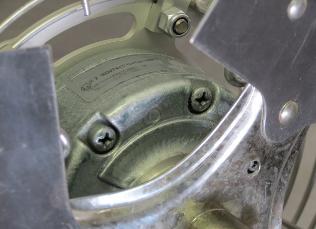

Explosion Proof Air Motor
Air Motor, Rear View

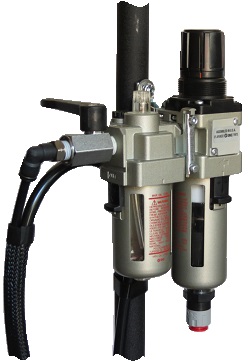

FRL Assembly
& Controls
Compressed air driven ventilation & exhaust fans on this page,
powered by explosion proof compressed air motors, have the
advantage of being intrinsically safer in damp, dusty or explosive
environments.

Ideal for use in areas where you do not want to use electricity, or
where compressed air is more readily available.  Plug them into
shop air and they run both cool and spark-free.
Comp. Air
Use, CFM
Fan Air
Flow, CFM
RSF18-01 18" Rolling Stand Fan, without FRL $571.00
Comes
with FRL?
Model #                                Description                            Price            Buy
Blade
Dia.
500- 4500
0.7 - 6
18"
0.7 - 6
18"
NO*
YES
Motors that run on compressed air require proper air preparation.

These fans require an air filter, regulator and automatic inline lubricator feeding the air motor.  Air supply should be filtered to 5
microns, regulated to 100 PSI maximum and must include a mist oiler (lubricator).

If you buy the
-01 model the fan will come without an FRL (Filter/Regulator/Lubricator) but you must supply an equivalent air
preparation unit
to filter, regulate and lubricate the air supply feeding the fan motor.

Recommended oil is Gast #AD220 or equivalent SAE 10W high detergent motor oil (non-synthetic only).  White Rex 425 oil is
recommended for food grade applications.
* Please note:
_______________________________________________________________________________________________________________________________________________
500- 4500
1/4 NPT STACKED FRL UNIT
1/4 NPT Stacked FRL unit (all-in-one filter, regulator, luber combination) with mounting bracket. 53 CFM @100 PSI. 5 micron filtration. 7-120 PSI regulation range. Float-style auto draining filter bowl. Uses 10W air line lube with fully adjustable lube rate. 1 3/4 oz oil capacity. Double layer Polycarbonate bowls. 9,5" Ht. x 4.5" Wd. 145 PSI Max. inlet pressure, 140F max. operating temperature (no freezing).
This FRL is suitable for use with all fans on this page.
$115.75
AIR POWERED FANS
Ferguson
Engineering
(805) 461-3920
Sorry, all Tonson fans are no longer available in the United States.
User's
Manual
800- 5800
1 - 7
24"
1 - 7
24"
NO*
YES
800- 5800
Size,
L x W x H
32x24x53
32x24x53
32x30x56
32x30x56
Weight
lbs.
28
30
40
44
RSF18-02 18" Rolling Stand Fan, with FRL $683.00
RSF24-01 24" Rolling Stand Fan, without FRL $706.00
RSF24-02 24" Rolling Stand Fan, with FRL $818.00
(No longer available)
(No longer available)
(No longer available)
0.7 - 6
18"
NO*
500- 4500
37x23x27
32
PWF18-01 18" Pivoting Wall Fan, without FRL $641.00
0.7 - 6
18"
YES
500- 4500
37x23x27
36
PWF18-04 18" Pivoting Wall Fan, with FRL $753.00
0.7 - 6
18"
NO*
500- 4500
22x23x7
20
WSF18-01 18" Work Station Fan, without FRL $526.00
0.7 - 6
16"
YES
500- 4500
22x23x7
25
WSF18-04 18" Work Station Fan, with FRL $638.00
_______________________________________________________________________________________________________________________________________________

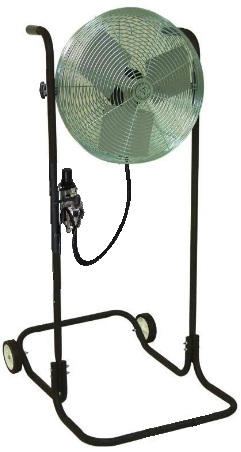

RSF18-02
shown
● Portable stand fan (painted steel frame with wheels for easy moving)
● 18” or 24" diameter tilt-able fan, aluminum blades, non-oscillating
● Explosion proof Gast air motor,  [Єx] II 2 G D c T4 rated
● 4500 or 5800 CFM max air flow with fully adjustable fan speed
● Required air pressure: 30 - 100 PSI
● Compressed air usage: <1 CFM at slow speed, 7 CFM at max speed
● OSHA approved coated steel guards
● Available with or w/o FRL air-prep assembly (requires an auto-lubricator*)
● Made in the USA
Rolling Stand Fan, RSF Series
Comp. Air
Use, CFM
Fan Air
Flow, CFM
Comes
with FRL?
Model #                                Description                            Price            Buy
Blade
Dia.
User's
Manual
Size,
L x W x H
Weight
lbs.
_______________________________________________________________________________________________________________________________________________
Wall/Ceiling Mount Fan, WSF18 Series
● Mountable work-station fan (can be mounted to wall, ceiling, work surface)
● 18” diameter tilt-able fan, aluminum blades, non-oscillating
● Explosion proof Gast air motor,  [Єx] II 2 G D c T4 rated
● 4500 CFM max air flow with fully adjustable fan speed
● Required air pressure: 30 - 100 PSI
● Compressed air usage: <1 CFM at slow speed, 7 CFM at max speed
● OSHA approved coated steel guards
● Available with or w/o FRL air-prep assembly (requires an auto-lubricator*)
● Made in the USA
WSF18-01
shown
_______________________________________________________________________________________________________________________________________________
Pivoting Wall Mount Fan, PWF18 Series
● Pivoting Wall Mount fan (mounts to a vertical surface)
● 25" Arm length (measured from wall to center of fan)
● 1 1/2" square steel tubing arm with 3 1/2 x 5" steel, 4-hole mounting plate
● Arm rotates at wall-mount and fan pivots both vertically and horizontally
● 18” diameter tilt-able fan, aluminum blades, non-oscillating
● Explosion proof Gast air motor,  [Єx] II 2 G D c T4 rated
● 4500 CFM max air flow with fully adjustable fan speed
● Required air pressure: 30 - 100 PSI
● Compressed air usage: <1 CFM at slow speed, 7 CFM at max speed
● OSHA approved coated steel guards
● Available with or w/o FRL air-prep assembly (requires an auto-lubricator*)
● Made in the USA
Comp. Air
Use, CFM
Fan Air
Flow, CFM
Comes
with FRL?
Model #                                Description                            Price            Buy
Blade
Dia.
User's
Manual
Size,
L x W x H
Weight
lbs.
PWF18-01
shown
_______________________________________________________________________________________________________________________________________________________________________________________
