Volume Pricing
We offer volume pricing on Sprague products as
follows:

1-2 units = List price
3-10 units = - 3%
11-25 units = -10%
>25 = call for quote.

List pricing will show when placing your order but the
discount will be applied when we process the order.

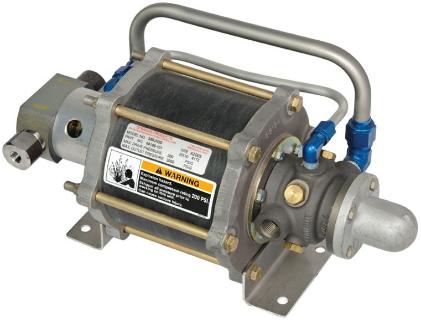

S-86-JN-2 Sprague S-86 Gas Booster, 2:1, 88734-1
$2484.00
Price         Buy
2:1
Pump
Ratio
▼
Model #                                 Part Description,  Ref. #
90725-11 Sprague S-86-JN-2 Booster Overhaul Kit, 2:1, 90725-11
$240.00
Price         Buy
Repair Parts for S-86-JN Gas Boosters
HOW THE SPRAGUE GAS BOOSTER WORKS

The Sprague gas booster is an air-operated piston-type booster. It uses a mechanically operated, snap-action air selector valve to cycle the booster.
Low pressure air acting against a large area piston drives a small area compression piston which converts input gas to higher pressure. The discharge
pressure developed is determined by the ratio between the area of the two pistons, the operating air pressure and the available pre-charge pressure.
The function of the pre-charge pressure to the booster is to charge the high pressure cylinder inside the booster with gas, reducing the time required
to reach higher pressures and the time to return the pistons for the next compression cycle.  See the manuals (above) for more details.
__________________________________________________________________________
Use shop air
pressure to achieve
high pressure gas
boosting.
1,100
5:1
13
16
S-86-JN-5 Sprague S-86 Gas Booster, 5:1, 88621-1
$2566.00
3,100
15:1
10
18
S-86-JN-15 Sprague S-86 Gas Booster, 15:1, 90081-1
$2893.00
6,000
30:1
7.2
20
S-86-JN-30 Sprague S-86 Gas Booster, 30:1, 88186-101
$3030.00
6,100
60:1
3.8
20
S-86-JN-60 Sprague S-86 Gas Booster, 60:1, 90404-1
$3711.00
10,300
100:1
4.0
20
S-86-JN-100 Sprague S-86 Gas Booster, 100:1, 90036-2
$3848.00
90727-11 Sprague S-86-JN-5 Booster Overhaul Kit, 5:1, 90727-11
$343.00
5:1
15:1
90729-11 Sprague S-86-JN-15 Booster Overhaul Kit, 15:1, 90729-11
$437.00
Sprague S-86-JN-30 Booster Overhaul Kit, 30:1, 90731-11
90731-11
$437.00
30:1
60:1
90733-11 Sprague S-86-JN-60 Booster Overhaul Kit, 60:1, 90733-11
$437.00
90735-11 Sprague S-86-JN-100 Booster Overhaul Kit, 100:1, 90735-11
$437.00
100:1
__________________________________________________________________________
__________________________________________________________________________
Sprague S-86-JN Gas Boosters & Parts
Ferguson
Engineering
(805) 461-3920
__________________________________________________________________________
Please Email us if you need to purchase individual repair parts.

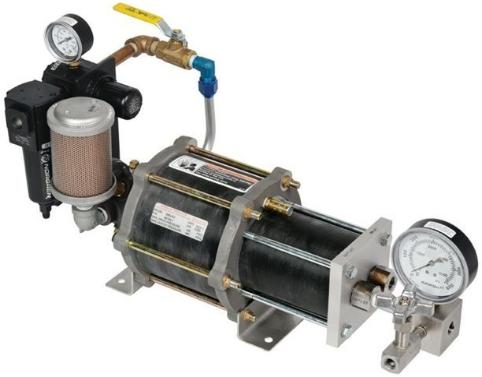

Gas Boosters are also available as "Power Units"
