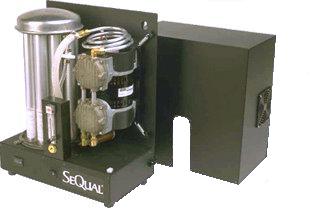

| Workhorse Series (Workhorse-15 Profile shown with cover removed) |

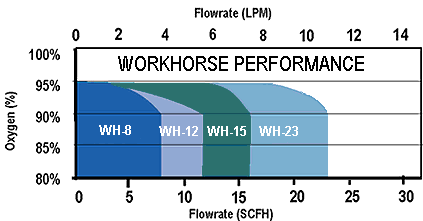

| COMPARISON CHART SHOWING EFFECT OF FLOW RATE ON % OXYGEN CONCENTRATION FOR DIFFERENT MODELS |
Electrical Power Consumption: 450-1000 Watts
depending on model selected.
Compressed Air Input Requirements:
None (has on-board compressor - uses ambient air)
Ambient Air Parameters:
40°F - 130°F (4°C - 54°C) inside operating enclosure
0°F - 140°F (-18°C - 60°C) storage
Oxygen Delivery Dewpoint: -100°F(-73°C)
Outlet:
Oxygen outlet: 1/8" NPT female pipe connection
Flow Rates & Dimensional info: see charts below
Warranty: 1 year
depending on model selected.
Compressed Air Input Requirements:
None (has on-board compressor - uses ambient air)
Ambient Air Parameters:
40°F - 130°F (4°C - 54°C) inside operating enclosure
0°F - 140°F (-18°C - 60°C) storage
Oxygen Delivery Dewpoint: -100°F(-73°C)
Outlet:
Oxygen outlet: 1/8" NPT female pipe connection
Flow Rates & Dimensional info: see charts below
Warranty: 1 year
| The Workhorse Series are complete plug-&-play systems - plug them in a wall outlet and you are oxygen-ready. Each stand-alone unit has its own ATF module, on-board air compressors, heat exchanger, flow gauge and flow control. In addition, the small-footprint Profile units come with covers that include built-in cooling fans. (If you are looking for component level concentrator modules see the ATF Series.) |
| SeQual Workhorse Specifications |
