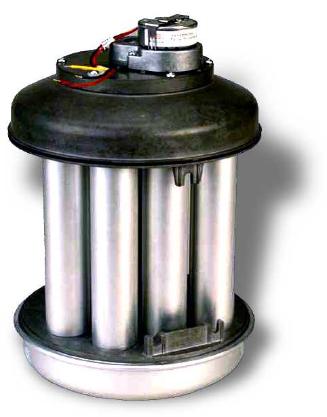

An ATF Module (ATF-8 shown)

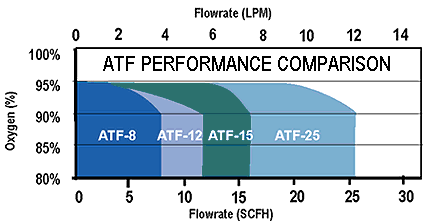

COMPARISON CHART SHOWING EFFECT OF FLOW RATE ON
% OXYGEN CONCENTRATION FOR DIFFERENT MODELS
Electrical Power Consumption: 3 Watts

Compressed Air Input Requirements:
Clean (oil-less) air @ pressure specified in chart below
Maximum temperature of 170°F(77°C)
Performance rated at 120°F(49°C)

Ambient Air Parameters:
40°F - 130°F (4°C - 54°C) inside operating enclosure
0°F - 140°F (-18°C - 60°C) storage

Oxygen Delivery Dewpoint: -100°F(-73°C)

Mounting:
Two integral mounting pads provided
Optional toe clamps available
Vertical mounting preferred
Must be isolated from compressor vibration

Inlet/Outlet:
Air inlet: Barb for 1/2" (12.7mm) ID tubing
Oxygen outlet: Barb for 1/4 " (6.4mm) ID tubing

Flow Rates & Dimensional info: see charts below

Warranty:  1 year

ISO 9002 Certified
The ATF module is a system component that makes it very simple to build your own industrial oxygen generator /
concentrator. Mount the unit, wire the motor and plumb the inlet and outlet (compressed air and oxygen).  Done!
The whole system is self-contained so you don't need directional solenoid valves, electronic controls for cycling, or
complicated plumbing and wiring.  To learn more about how ATF technology works click here.

(If you are looking for plug-&-play systems with built-in air compressors see the Workhorse Series.)

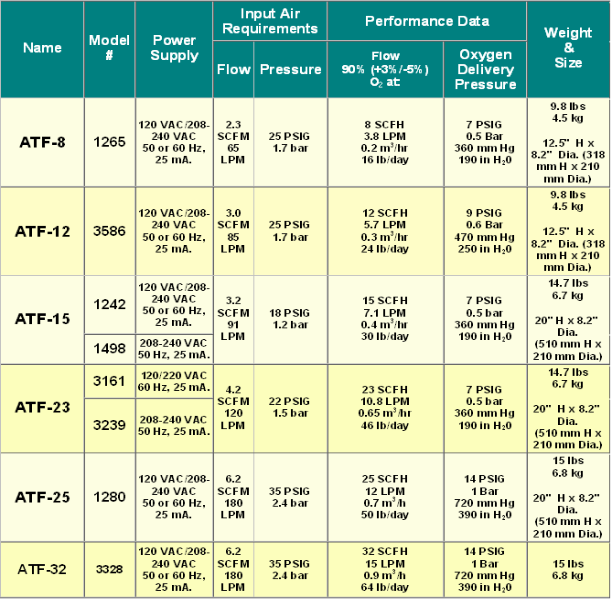

ATF Oxygen Concentrator Specifications
Ferguson
Engineering
(805) 461-3920
_______________________________________________________________________________
_____________________________________

Typical Electrical Connection (dual voltage):

Common: Yellow
120 VAC: Red
220/240 VAC: Black
